Omid G

Source Code To download the printable body visit the Thingiverse link below. For additional information email me at OmidGhayouri@outlook.com

Omid G 2018

Bluetooth Connectivity

Project Wear is a modular device that can be attached to an existing set of frames to turn them into a pair of smart glasses. Its design incorporates Bluetooth connectivity and bone conduction technology to allow the user to seamlessly listen to audio without having to block their ears.

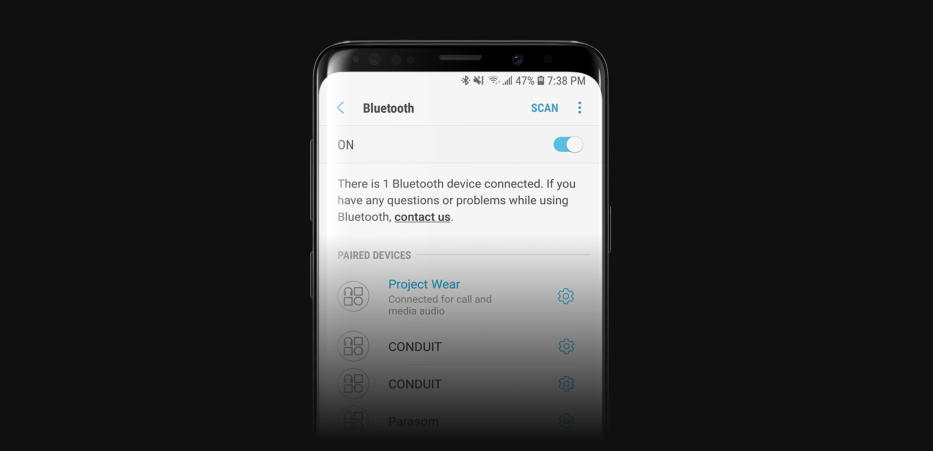

This device uses Bluetooth connectivity with AVRCP profiling. This allows for audio streaming and basic remote commands such as play/pause/volume control. Its range is rated for use within 10-15 meters from the streaming device.

Features

Bone Conduction Technology

The device incorporates bone conduction technology to transmit sound by sending vibrations through the bone of the users skull. Each transducer is 13mm x 5mm in size and sits just in front of the users ear. The technology works by sending vibrations directly to the Cochlea in the inner ear, skipping the eardrum entirely. It’s design means that the user can listen to audio from the device without blocking the outer ear like traditional headsets. Learn More >

5.0

AVRCP

15m

Bluetooth

Profiling

Technology

Using

In Range

Up to

Overview

Compact Size

13mm x 15mm

Open Ear Solution

Slim Design

It’s design was created to be slim and lightweight. The case body is 4mm thick and weighs less than 10g. This allows them to be worn the entire day without getting in the way or being uncomfortable for the user. The power and volume buttons are located on the bottom of the body making them easily accessible and natural to press.

4mm

10g

Only

In Weight

Thick

Only

Microphone

The device uses a microphone as its secondary form of input. This allows the user to answer calls and use voice commands with Google Assistant, SIRI or Bixby. With a built in mic the device becomes hands-free allowing it to be seamlessly integrated into the users glasses and daily lives.

Answer Calls Hands Free

Use Voice Commands with Google Assistant, SIRI or Bixby

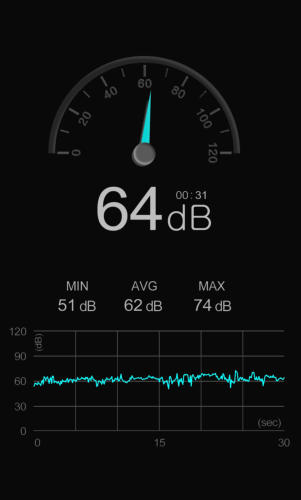

PLA Body This variant is created using polylactic acid which is a biodegradable plastic with rigid properties. This casing results in noise leakage at high volumes due to its rigid design.

Variants

TPU Body This variant is created using thermoplastic polyurethane which is a plastic with elastic properties. This casing does a better job at absorbing vibrations which reduces noise leakage when used at high volumes.
